27/06/2010 - Floor stiffeners

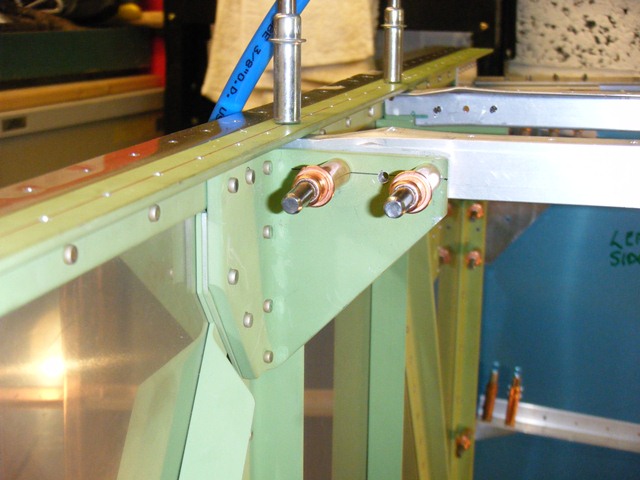

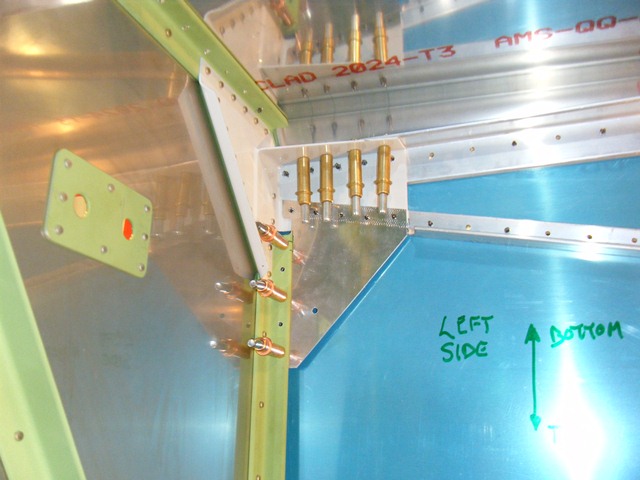

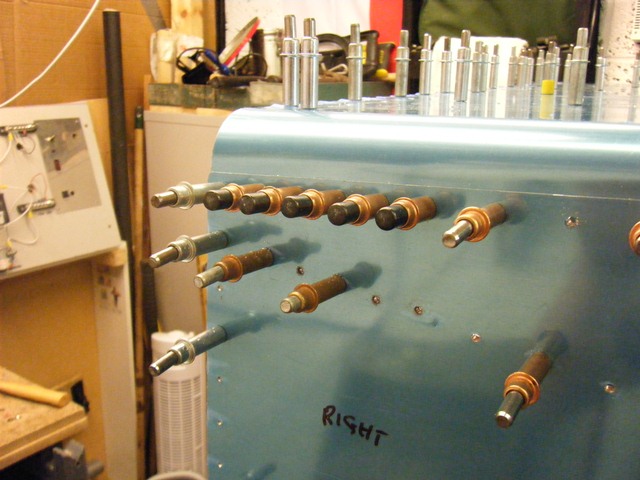

I final drilled the F772 bottom skin to the firewall, and drilled the lower longerons and steel firewall brackets

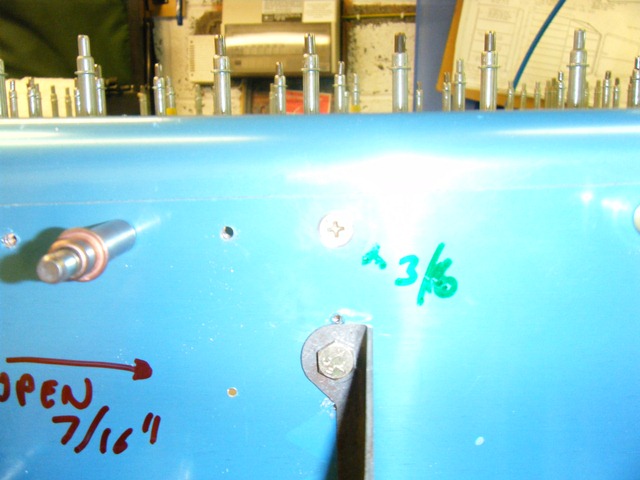

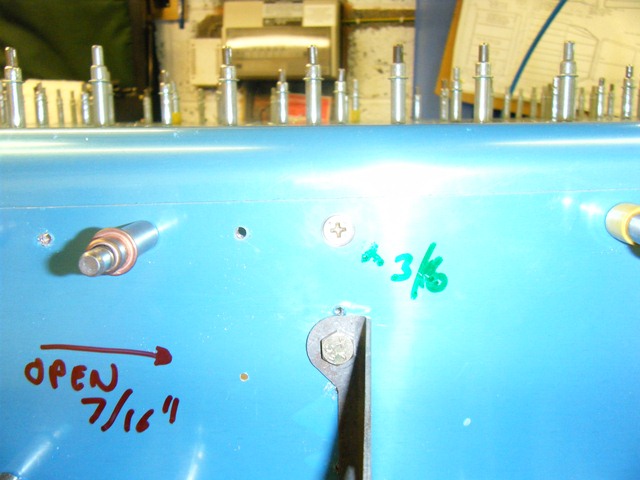

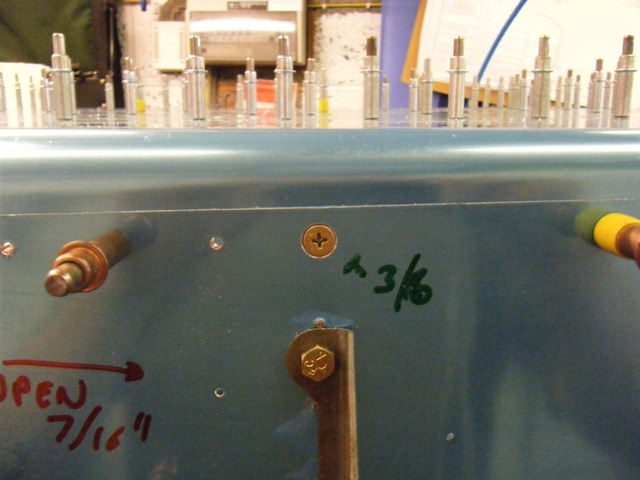

Having drilled the bottom fuel attach bracket hole to #12, I countersunk the hole - which effectively puts a countersink in the side skin, bottom skin and lower longeron.

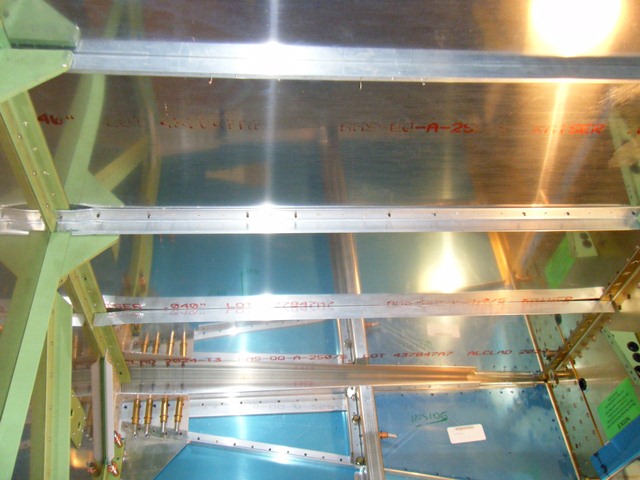

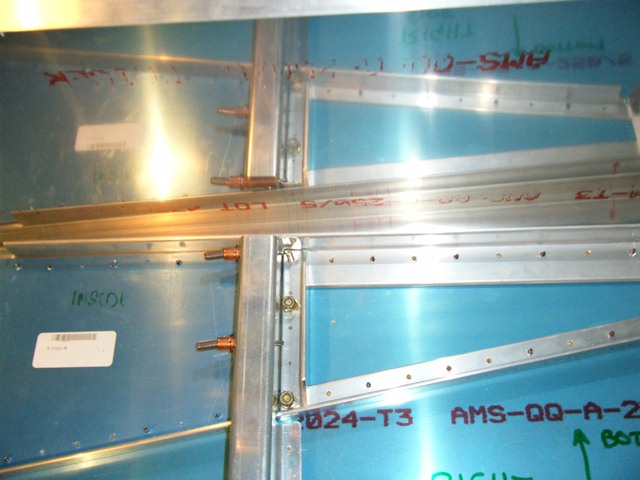

Then drilled the floor stiffeners as per the plans
